plain-reinforce

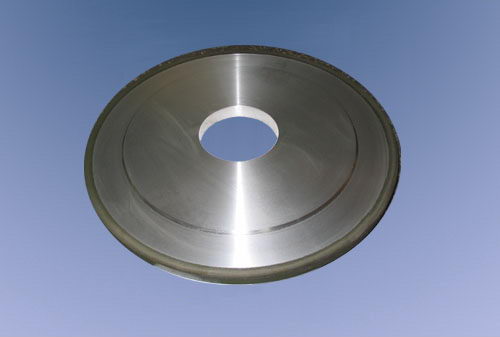

Plain Reinforce Grinding-wheel

>>>Plain Reinforce Grinding-wheel specific in reinforce the strong of basement. It can maintain the working condition of the grinding-wheel.
>>> Plain Grinding-wheels are used in outer-round grinding, inner-round grinding, plane grinding, centerless grinding, tool grinding, screw-thread grinding and grinder according to different patterns. Adopted in notch and free-grinding.
>>> Plain Grinding-wheel could adopt of Outer-Rotary Grinding, Inner-Rotary Grinding, Plane-Grinding, Centerless Grinding, Tools Grinding, Screw Grinding and Grinder etc.


reinforce-wheel

tubbish-grinding-wheel

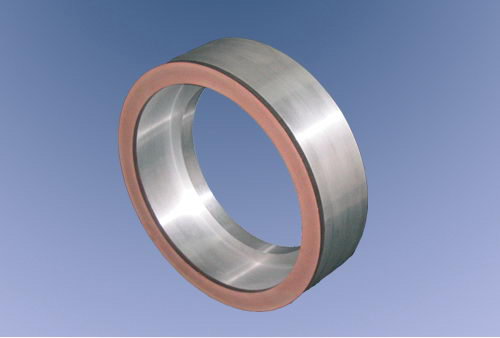

Tubbish Grinding wheel

>>> Tubbish Grinding wheel ordinarily used in arising plane-grinder, ceramic grinding, glass grinding, blade grinding, milling cutter, reamer, expanding drill, draw knife, discal lathe-tools, slotting cutter etc.


glass-process

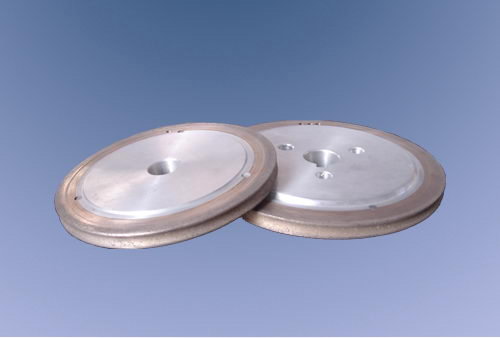

Grinding wheel for Glass-processing

>>> Grinding wheel for Glass-processing widely employed in every grinding-requirement in the field of Glass-processing. We could provide different kinds of patterns and models according to the requirements of our customers.


irregular-grinding-wheels

Irregular Grinding-wheels

>>> Every model, pattern and drawing could be made according to the specific requirements and the actual situation of the device of our customers.


molybdenum

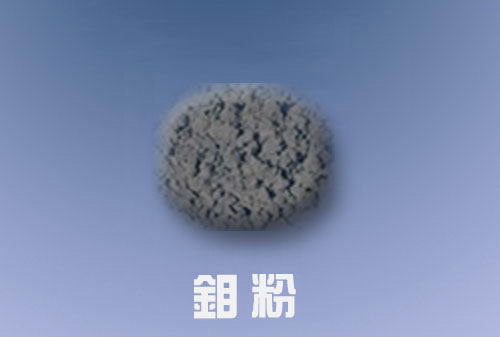

Molybdenum Powder

>>> Appearance: Pure Gray Metallic-Powder.
>>> Usage: Used for the materials of molybdenum and molybdenum-alloy products. For instance Huge molybdenum-billet; Silicon molybdenum capacitor; Controllable silicon roundpiece; Molybdenum thumbstall etc. Including the spray molybdenum adopted in the surface-spraying for automobile gear, piston ring, clutch etc. of wearable workpieces. It also could collaborate with other spray-materials.
>>> Brand: Yinglong FMo-1, FMo-2
>>> Majoy content: FMo-1 Mo¡Ý99.9% (Count by minus-method); FMo-2 Mo¡Ý99% (Count by minus-method)
>>> Loose density: (0.95-1.2)g/cm3

Powder Granularity

F.S.S.S, um

¡Ü2

>2-3

>3-4

Containing of Oxygen, %, Less than

0.35

0.25

0.20

Chemical Composition
Brand & Grade
FMo-1
FMo-2
Containing of Impurity, %, Less than
Pb
0.0001
0.001
Bi
0.0001
0.001
Sn
0.0001
0.001
Sb
0.0010
0.001
Cd
0.0001
0.001
Fe
0.0050
0.030
Ni
0.0020
0.005
Cu
0.0010
-
Al
0.0020
0.005
Si
0.0030
0.010
Ca
0.0020
0.004
Mg
0.0020
0.005
P
0.0010
0.005
C
0.0100
0.020
