one-arc
double-recesses

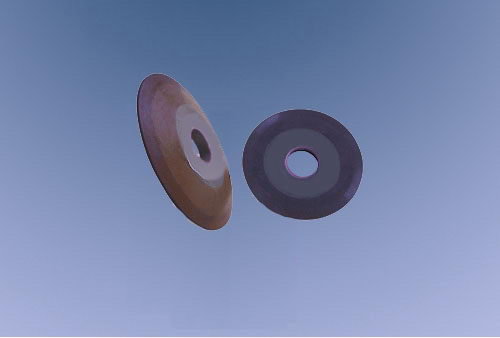

Single-Arc Grinding-wheel

>>> Single-Arc Grinding-wheel No.1 mainly adopted of the grinding for kinds of sawtooth. Single-Arc Grinding-wheel No.2 of lower 30O angle, used for milling-cutter, reamer and jig grinding etc.

>>> Grinding is one of the major processing in Half-Precision Process and Precision-Process. Grinding-wheels adopted in Plane-grinder, Outer-Rotary grinder and Inner-Rotary grinder as a very important role. It also could be used for blade-grinding.

>>> Grinding-wheels are manufactured into different models and patterns according to specfic grindings and grinders. Ordinary Grinding-wheels include: Plain Grinding-wheel, Tubbish Grinding-wheel, Cup Grinding-wheel, Dished Grinding-wheel and Taper-cup Grinding-wheel etc.

>>> We manufacture Diamond/CBN Grinding-wheels and abrasive-materials; Adopt of field of Glass and ceramic grinding; Metallic Grinding-wheels and Resinoid Grinding-wheels used in Glass-processing field; Polishing wheel; Diamond tools used to process magnetic and hard-alloy materials; in addition to irregular Diamond/CBN Grinding-wheels suit to different grinding.


double-arc

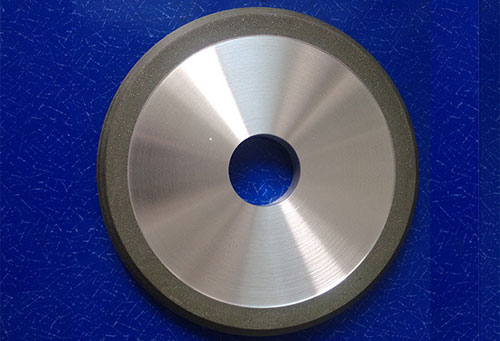

Double-Arc Grinding-wheel

>>> Double-Arc Grinding-wheel No.1 mainly adopted of gear and single-screw grinding. The Double-Arc Grinding-wheel No.2 and No.3 mainly used for Outer-Rotary and Plane grinding.

>>> Choose of Grinding-wheels:
1. Soft and Upper Grit-number Grinding-wheel should be choosed for grinding hard materials. In corresponse the hard and Lower Grit-number Grinding-wheel suit to soft materials. It will save the usage of Grinding-wheel as well as anti-jam.
2. Coarse-grinding choose soft Grinding-wheel. Fine-ginding should use hard Grinding-wheel.
3. Large plane-grinding or thin-workpiece grinding should have lower Grit-number and soft Grinding-wheels. In order to keep shape and anti-burning of workpieces.
4. Shaped Grinding should use Upper Grit-number and hard grinding-wheel to keep the outline of the wheel.
